eDrawings Viewer

eDrawings Viewer 2024

Windows
eDrawingsFullAllX64.exe | 215.36 MB | VirusTotal Scan report
Mac
iOS / iPadOS
Android
PriceFree
Version2024
Release DateMarch 7, 2024
PublisherDassault Systèmes - https://www.edrawingsviewer.com
Publisher's Description

eDrawings is free software that lets you view and print eDrawings(eDRW, ePRT, eASM), native SolidWorks documents (sldprt, sldasm, slddrw), DXF, and DWG format files.

Open/View DWG and DXF files

With its lightweight file format and rich tool set, eDrawings Viewer is the ideal tool for your supply chain to use during the quoting process. Using eDrawings to view and interrogate the design data minimizes any possible confusion and the need for multiple emails to clarify design requirements which slow down the quoting process.

View 3D Models & 2D Drawings for Free

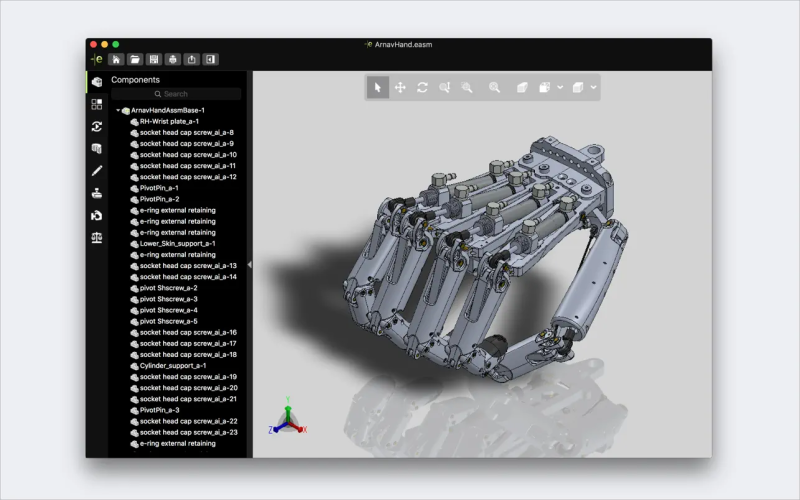

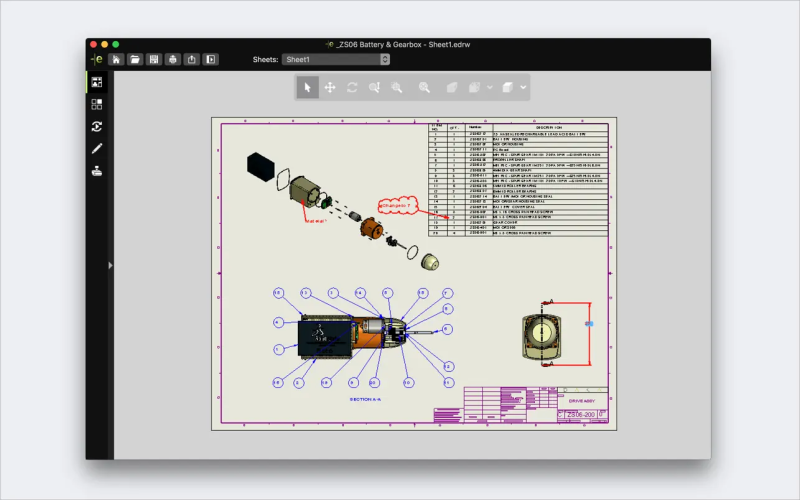

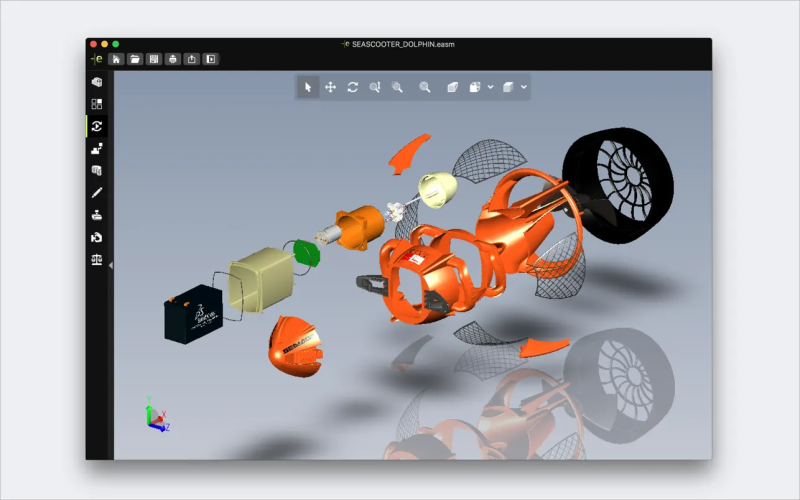

View the most popular native 3D (SOLIDWORKS) and 2D (DWG / DFX) formats in a single viewer. Interrogate the models using the measure tool as well as move and section commands to view model internals. Once opened, files can be saved as eDrawings files for lightweight sharing.

View CAD Files in AR/VR

The Augmented Reality (AR) and Virtual Reality (VR) capabilities of eDrawings extends its use into virtual product evaluations by design teams and customers. VR capabilities are available in windows desktop professional and AR/VR capabilities are available in mobile versions of eDrawings.
